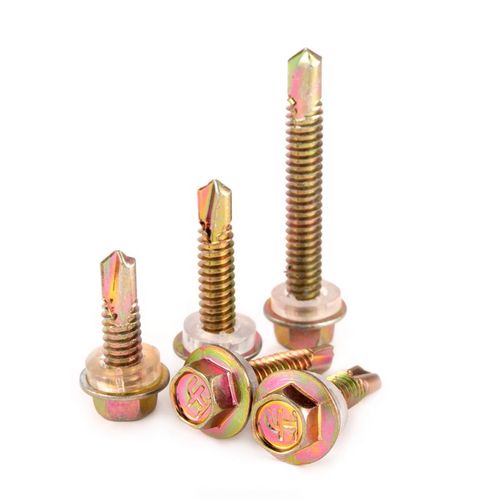

Zinc Plated Metal Hexagon Self Drilling Screw
ApplicationMetal to metal fastening. Metal to wood fastening. Suitable for roofing, walling, and fencing profiles.MaterialCarbon Steel C1022A.Grade8.8Surface TreatmentBlack / Yellow / Blue / Blue White Galvanized, Ruspert 500hr 1000hr 1500hr, Dacromet 500hr 1000hr 1500hr, Painting Head or as request
Product Details
Application | Metal to metal fastening. Metal to wood fastening. Suitable for roofing, walling, and fencing profiles. | ||||
Material | Carbon Steel C1022A. | ||||
Grade | 8.8 | ||||
Surface Treatment | Black / Yellow / Blue / Blue White Galvanized, Ruspert 500hr 1000hr 1500hr, Dacromet 500hr 1000hr 1500hr, Painting Head or as requested. | ||||

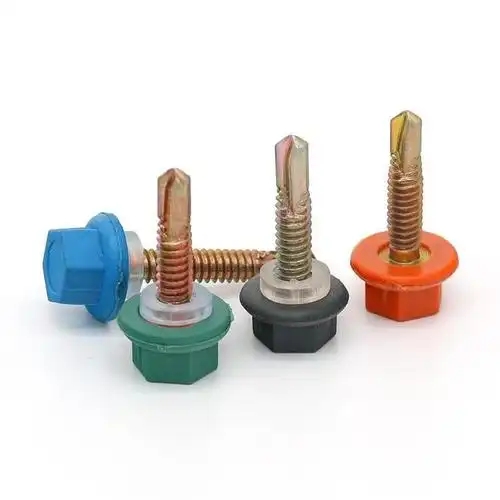

Head Type | Hexagonal head. Hex washer head. Hex Flange head. Hex Slotted Head. | ||||
Groove | Hex, Hex Slotted, Hex Socket. | ||||
Washer | With or without washer. | ||||
Thread | Self-drilling Screw Single Thread. Full Thread. Half Thread with shank. Thread cutting. Double Thread or as requested. | ||||
Point | Drill Point 2# 3# 4# 5#. Spoon, Sword Drill Point. Spade Tips. | ||||
Sharp Tapping Point with or without T17 tail. | |||||
Available Packing | Bale Packing (25kgs/bag, 20kg to 25kgs/carton, 1 ton/bag, 1 ton/wooden box). | ||||
Individual Box with printed logo or sticker + master carton + pallet, or as requested. | |||||
Specification | |||||
Metric standard | Inch standard | ||||
Regular sizes | |||||
Diameter 4.8mm Metric | Diameter #10 | Diameter 5.5mm Metric | Diameter #12 | Diameter 6.3mm Metric | Diameter #14 |
4.8 x 16 | #10 x 1/2 | 5.5 x 19 | #12 x 3/4 | 6.3 x 19 | #14 x 3/4 |
4.8 x 20 | #10 x 3/4 | 5.5 x 25 | #12 x 1 | 6.3 x 25 | #14 x 1 |
4.8 x 25 | #10 x 1 | 5.5 x 32 | #12 x 1-1/4 | 6.3 x 32 | #14 x 1-1/4 |
4.8 x 32 | #10 x 1-1/4 | 5.5 x 38 | #12 x 1-1/2 | 6.3 x 38 | #14 x 1/2 |
4.8 x 38 | #10 x 1*1/2 | 5.5 x 41 | #12 x 1-3/4 | 6.3 x 51 | #14 x 2 |
4.8 x 41 | #10 x 1-3/4 | 5.5 x 50 | #12 x 2 | 6.3 x 63 | #14 x 2-1/2 |
4.8 x 50 | #10 x 2 | 5.5 x 63 | #12 x 2-1/2 | 6.3 x 75 | #14 x 3 |
4.8 x 63 | #10 x 2-1/2 | 5.5 x 75 | #12 x 3 | 6.3 x 100 | #14 x 4 |
4.8 x 75 | #10 x 3 | 5.5 x 100 | #12 x 4 | 6.3 x 125 | #14 x 5 |
4.8 x 100 | #10 x 4 | 5.5 x 125 | #12 x 5 | ||
4.8 x 125 | #10 x 5 | ||||
4.8 x 150 | #10 x 6 | ||||
4.8 x 165 | #10 x 6-1/2 | ||||
4.8 x 180 | #10 x 7 | ||||
* Material: The Screws are made of carbon steel C1022A to enhance the strength of the Hex Head Self-drilling screws. Adopt a high-strength rolling arm, small gap, mute, wear-resistant, and uniform force.
* Hex head: The six flat surfaces of the hexagonal head have a larger contact area with the wrench or socket, allowing it to withstand higher torque when tightening. The hexagonal head is less prone to slippage during tightening, making it especially suitable for dynamic load environments. It can be operated with ordinary open-end wrenches, box wrenches, and socket wrenches, without the need for special tools.
* Washer: Helps the screws against water penetration.
* Sharp Point: It is usually used in wood structures. Enable the screw the screw in and cause a little damage. Cannot drill through metal and needs a pilot hole. Sharp point is available with almost any possible screw head design.
* Drill Point: Most of the roofing screws have a drill point. It is commonly used to fasten metal, plastic, and fiberglass roofing sheets to metal or wood structures. The drill point enables drilling without creating a pilot hole first. But if it is used in extremely hard material, it is advised to use it after creating a pilot hole.

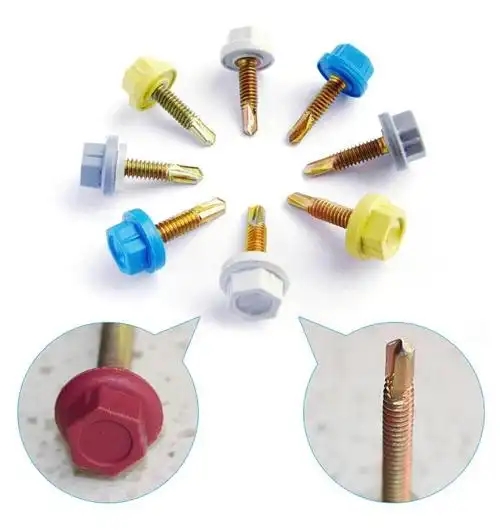

* Surface Treatment: Blue-white zinc has a slight edge in rust prevention, and its natural color is light, making it less prone to discoloration after coating. After zinc plating and heat treatment, the Self-drilling Screws become resistant to corrosion and harder. The Ruspert and Dacromet treatment is successful in achieving superior anti-corrosion performance.
* Thread: The screw with full sharp thread ensures that the screw can better distribute the tension.
* Our Advantage: Adopt a high-speed cold heading machine to form one piece, high strength. Self-owned heating treatment producing line, which can ensure screws' hardness and strength perform well always.Stable drilling speed, not easy to break.
